The SS Safety Line Standing Seam Roof – 50 Meter Kit is a permanent horizontal lifeline system engineered to provide reliable fall protection for personnel working on standing seam metal roofs. Built with SS316L stainless steel wire rope and premium-grade SS304/SS316 components, the system delivers superior corrosion resistance, high tensile strength, and long-term durability.
Designed in accordance with EN 795:2012 Type C standards, the kit installs using standing seam clamps without penetrating the roof sheet, preserving roof integrity while ensuring maximum safety. It is an ideal solution for solar PV installations, industrial buildings, warehouses, commercial facilities, and rooftop maintenance.
| Product Name | SS Safety Line Standing Seam Roof – 50 Meter Kit |
|---|---|
| Roof Type | Standing Seam Metal Roof |
| Total Lifeline Length | 50 Meter |
| Wire Rope | 8 mm SS316L Stainless Steel (7×19 Construction) |
| Breaking Strength | 4.2 Ton |
| Tensile Strength | 1770 N/mm² |
| Material | SS316L & SS304 Stainless Steel |
| Standard | EN 795:2012 Type C |
| Intermediate Posts | 4 Nos. |
| Shock Absorber | Spring Type SS316L |
| Tensioner | Swage to Jaw Tensioner |
| Applications | Solar Rooftops, Warehouses, Industrial Buildings, Commercial Roofs & Maintenance Access |
| Installation | Standing Seam Clamp System (No Roof Penetration) |
| Corrosion Resistance | Excellent |
It provides permanent fall protection for personnel working on standing seam metal roofs.
No. The system is installed using standing seam clamps without drilling into the roof.
The system is designed in accordance with EN 795:2012 Type C.
The wire rope is manufactured from SS316L, while the anchorage components are made from premium SS304 and SS316 stainless steel.
Yes. It is ideal for solar PV installations, maintenance walkways, warehouses, and industrial rooftops.
Yes. Stainless steel construction provides excellent resistance against corrosion and harsh weather conditions.
Yes. Additional compatible components can be added to increase the overall lifeline length.
The additional intermediate posts provide proper cable support and maintain safe lifeline performance across the 50-meter span.

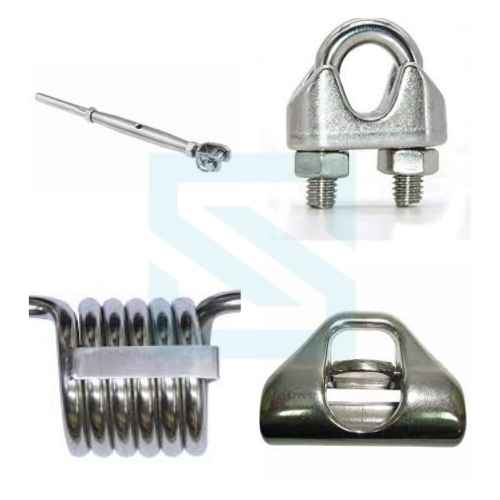

| Sr. No. | Product Description | Quantity |
|---|---|---|
| 1 |
SS 8 mm Wire Rope Construction: 7×19 Tensile Strength: 1770 N/mm² Breaking Strength: 4.2 Ton Material: SS316L |
50 Mtr |
| 2 |
Roof Top Anchorage End Post Material: SS304 Suitable for Crest Size up to 600 mm (625×350×200 mm) Conforms to EN 795:2012 Type C Standing Seam Clamp – 4 Nos. Aluminium Rivets M8×35 – 12 Nos. Hex Bolt M12×25 with Nut & FW LW – 04 Sets |
2 Nos. |
| 3 |
Roof Top Anchorage Intermediate Post Material: SS304 Suitable for Crest Size up to 600 mm (625×350×200 mm) Conforms to EN 795:2012 Type C SS304 Anchorage Top – 1 No. Standing Seam Clamp – 4 Nos. Hex Bolt M12×25 with Nut & FW LW – 04 Sets |
4 Nos. |
| 4 |
Roof Top Anchorage Corner Post Material: SS316L Proof Load: 10 kN Suitable for Crest Size up to 350 mm Complies with EN 795 Type C SS316L Corner Bracket Aluminium Rivets M7.7×27 mm – 12 Nos. |
0 Nos. |
| 5 |
Spring Type Shock Absorber Material: SS316L Tensile Load: 7.5 kN/mm² |
1 No. |
| 6 |
Swage to Jaw Tensioner (7600-002) Material: SS316 Dynamic Load: 15 kN Opening Size: 400 mm |
1 No. |
| 7 |
Cable Extremity Material: Stainless Steel 304L Thimble: 01 No. Suitable for 8 mm Rope Proof Load: 15 kN |
2 Nos. |
| Total Components | 60 | |
