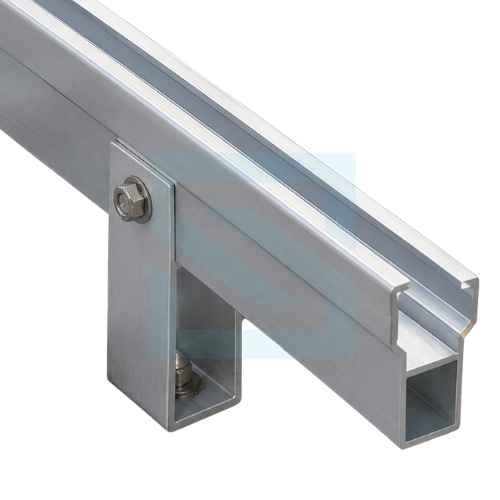

The SRPL U Type Long Rail Structure – 5 kW Kit (For 10 Panels) is a complete rooftop solar mounting solution engineered for the safe and reliable installation of 10 solar PV modules. Manufactured from high-strength Aluminium 6063-T6, the structure offers an excellent strength-to-weight ratio, superior corrosion resistance, and long-lasting performance in all weather conditions.
Designed as per relevant IS Standards, this kit includes all the essential mounting components, aluminium rails, module clamps, base supports, stainless steel fasteners, and installation accessories for quick and hassle-free installation. Compatible with 30 mm, 33 mm, 35 mm, and 40 mm framed solar modules, it is an ideal solution for residential, commercial, and industrial rooftop solar projects.
| Product Name | U Type Long Rail Structure – 5 kW Kit (For 10 Panels) |
| Material | Aluminium 6063-T6 |
| Structure Type | U Type Long Rail |
| System Capacity | 5 kW |
| No. of Solar Panels | 10 Panels |
| Available Heights | 100 mm & 150 mm |
| Panel Compatibility | 30 mm, 33 mm, 35 mm & 40 mm Framed Solar Modules |
| Fastener Material | SS304 Stainless Steel |
| Installation | Standard Tool Installation |
| Application | Residential, Commercial & Industrial Rooftop Solar |
| Design Standard | Designed as per IS Standards |
| Finish | Corrosion Resistant |
| Roof Compatibility | RCC, Metal Sheet & Other Compatible Roof Types |
| Warranty | 25 Years |
It is a complete rooftop solar mounting kit designed for the secure installation of a 5 kW solar PV system with 10 solar panels.
This kit is designed to support 10 framed solar PV modules.
The structure is manufactured using premium Aluminium 6063-T6 with SS304 stainless steel fasteners for superior strength and corrosion resistance.
The structure is compatible with 30 mm, 33 mm, 35 mm, and 40 mm framed solar modules.
Yes. The lightweight design allows for quick and easy installation using standard tools, reducing installation time and labour.
The structure is suitable for RCC roofs, metal sheet roofs, and other compatible rooftop applications.
The U Type Long Rail Structure is available in 100 mm and 150 mm height options.
Yes. The aluminium profile and SS304 stainless steel fasteners provide excellent corrosion resistance, ensuring long service life in outdoor environments.
Yes. The structure is backed by a 25-year warranty, ensuring reliable and long-term performance.
Yes. It is ideal for residential, commercial, and industrial rooftop solar projects requiring a durable and reliable mounting solution.
| Product Description | Quantity |
|---|---|
| Rail Nut – M8 | 24 |
| Rail Connector G2 LW19 T1.8 L150 AL 6063-T6 | 8 |
| LR2 U Base Support L40 | 24 |
| Allen Bolt M8 × 20 SS304/A2 | 8 |
| Allen Bolt M8 × 25 SS304/A2 | 16 |
| Plain Washer M8 SS304/A2 | 24 |
| Spring Washer M8 SS304/A2 | 24 |
| EPDM Tape 3 mm × 40 mm × 5 m | 1 |
| Self Drilling Screw 12 × 70 RX (Epoxy Coated) | 24 |
| Self Drilling Screw 12 × 45 (Epoxy Coated) | 80 |
| End Clamp (Z Type) – 30 mm / 33 mm / 35 mm / 40 mm | 8 |
| Mid Clamp (U Type) – 30 mm / 35 mm / 40 mm Aluminium 6063-T6 | 16 |
| Long Rail Lite L1425 | 4 |
| Long Rail Lite L2250 | 8 |
| Total Components | 245 |
